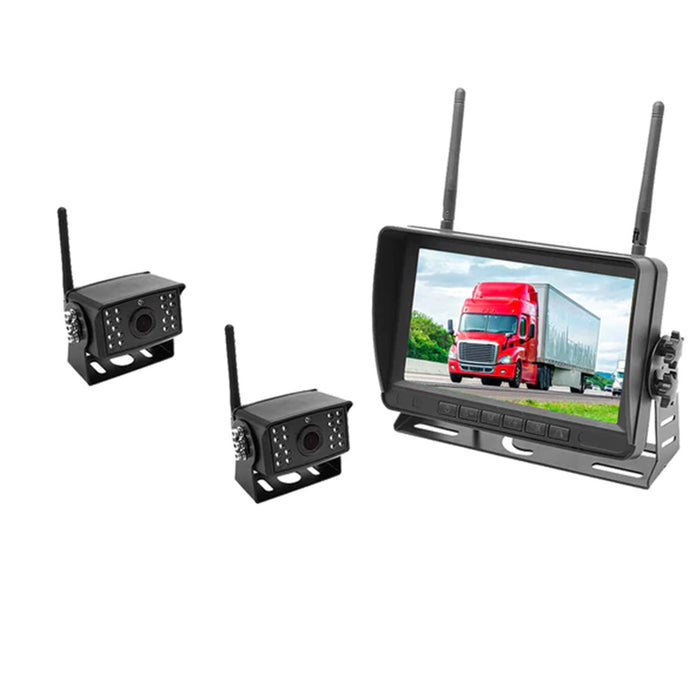

Top Dawg 2nd Gen 7in Monitor with 1-2 Digital Wireless Backup Camera System

Top Dawg 2nd Gen 7in Monitor with 1-2 Wireless Backup Camera System with 200-300Ft Wireless Range. Perfect Rear View Digital Wireless Cameras for Trucks, Truck Drivers, Semi-trucks, Buses, RV, 5th Wheel Trailers and Commercial Vehicles.

• Extended Wireless: Camera offers 200-300 foot wireless range
• Quality View Screen: Excellent video resolution and IR lights for great viewing at night
• Multiple Uses: Works with trucks, equipment and vehicles of any type. This cam allows you to see what is behind or in front of you during reverse or at all times!
• LCD Screen: 7” Color TFT-LCD Monitor with built-in receiver, one RCA A/V output
• Simple to use: Easy Installation, 10-30 Minute Install
• Heavy Duty: Weatherproof IR Camera with 120 degree ultra wide viewing
• Safety and Security: Reduce Backup Accidents by 70% or more

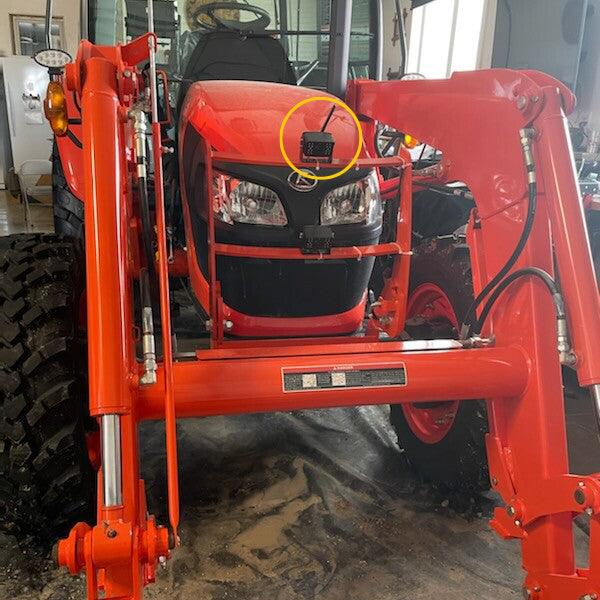

• Any View: See what is behind your vehicle at all times (or in front, depending upon where you install the camera)
• FREE Shipping: We ship all orders out USPS Priority, 1-3 Day shipping
• 30 Day Money Back Guarantee: Not sure if this is the headset for you, CHECK it out for 30 days to make sure!

What's In The Box?

 
Need more than 2 wireless cameras? Click HERE for our 2-4 Wireless cam system

7" LCD Monitor

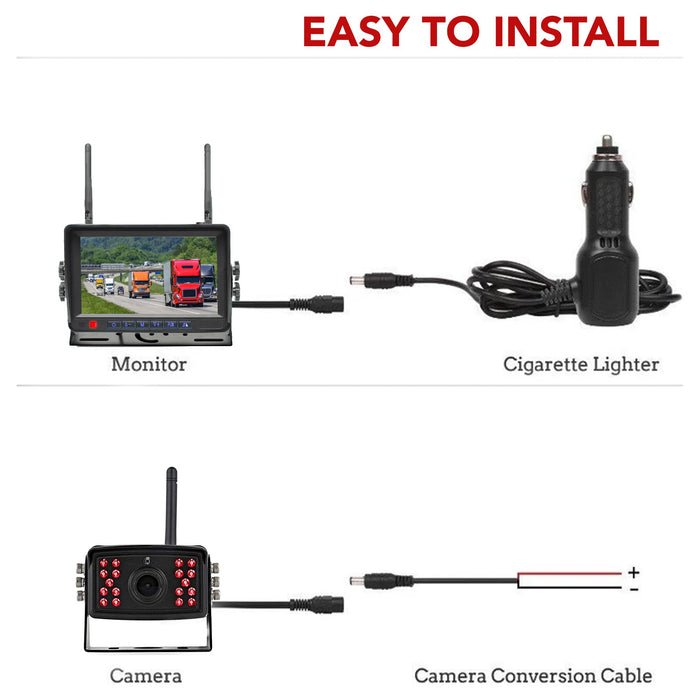

with heavy duty windshield bracket that has a car charger to power unit, or you can hard wire system into 12 volt power behind dash. When the camera powers on, the LCD will display what is behind the vehicle. This camera includes night vision LED lights that will illuminate at night giving the driver good visibility at night. This truck reversing camera system is designed for trucks, commercial trucks, RVs buses and more

HOW TO WIRE AND POWER YOUR DEVICE VIDEO
 
CCD Camera/Transmitter
 

• Imaging Sensor: CCD
• CCD Resolution: 800 TV Lines (720P equivalent)
• Minimum Illumination: 0 Lux
• Shockproof: 10G
• Number of Pixels: 2 Million Pixel
• Transmission Frequency: ISM Digital
• Transmission Power: 10mW/CE; 2mW/FCC
• Modulation Type: FM
• IR Night Range: 20 to 40 ft
• Bandwidth: 18 MHz
• Waterproof: IP69
• Power Supply: + 12V or 24V DC
• Consumption Current (Max.): 230mA
• Horizontal View Angle: 120 Degrees
• Unobstructed Effective Range: 200-300 Feet
• Dimensions (W x D x H): 3.75 x 2 x 2.5 inches (excluding bracket)
• Weight: 15.5 oz
• Operating Temperature: -30°F/150°F
• Operating Humidity: 85% RH

Monitor/Receiver

• LCD Resolution: 1024 x 600 pixels
• Receiving Frequency: ISM Digital
• Intermediate Frequency: 480 MHz
• Demodulation Type: FM
• Antenna: 50 ohm SMA
• Receiving Sensitivity: <= -85 dBm
• Video Output Signal Level: 1 .1 V +/- 0.2V~ @75ohm, S/N>38dB
• Power Supply: + 12/36 V DC
• Consumption Current (Max.): 600mA
• Unobstructed Effective Range: 200-250 Feet
• Dimensions (W x D x H): 8.5 x 1 x 6 inches
• Weight: 14 oz (excluding bracket)
• Operating Temperature: -10°C/+50°C or+14°F/122°F
• Operating Humidity: 85% RH

• Digital Wireless IP68 Heavy Duty Bracket CCD Camera
• Digital 7” TFT-LCD Monitor w/ built-in digital receiver & sun shield
• Cigarette Lighter power adapter for monitor
• 12V Additional monitor power cable for monitor (if you wish to hardwire)
• Dash Mount Holder for LCD
• Video cable, screws, wire connectors

• User manual

NEED ACCESSORIES FOR THIS CAMERA SYSTEM?

• Magnet Mount:  Allows for 1 minute installation & allows for each removal and install if you change trailers often. Click HERE

• Rechargeable Weatherproof Battery: If you do not want to connect the wireless camera to a 12v power source, you can add this 10 hr battery, which makes installation take less than 1 min. Click HERE

What's In The Box?

 

Product Disclaimer: This system is designed to be an aid and should not replace the need to drive carefully. Under no circumstances will manufacturer, supplier or retailer accept any responsibility or cannot be held liable for any direct or indirect, incidental or consequential damage or for injuries results from installing or using this system or from any backing accident.
