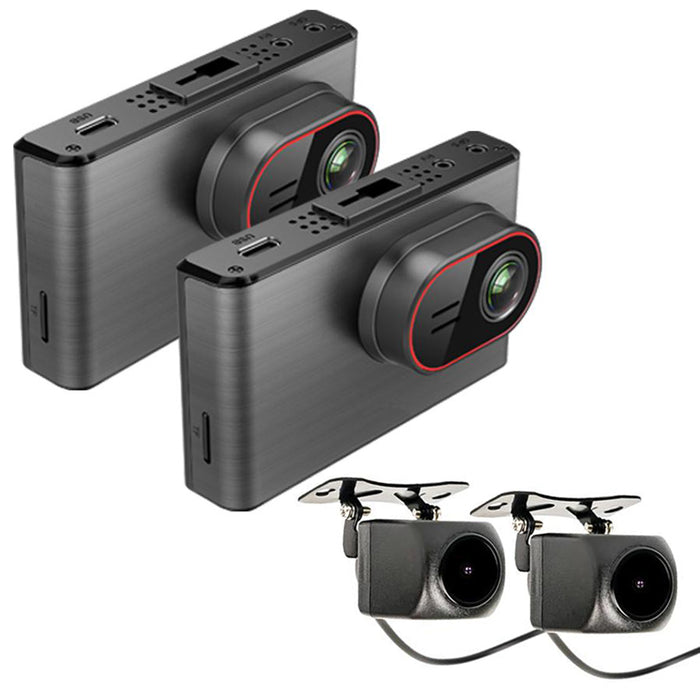

WIFI 2nd Gen 2K Quad (4) Pinnacle Touch Screen Dash Cam System

0
Save $30.00
Original price $499.99
Current price $469.99 $499.99
SKU TDPINNACLE4

Availability: In Stock

Top of the Line, 2K Quad Dash Cam System with WiFi & GPS was specifically designed for Truckers, Fleets, Uber/Lyft and ride shared drivers of any kind. Protect yourself and view videos of what happened in 2K video! Check out these main features.

  • Safety: The 2nd Gen Pinnacle Quad Dash Cam acts as your vehicle black box
  • Loop Recording: Records continuously, replacing old video footage with new footage
  • Multiple Viewpoints: Includes 4 Cameras, Record 4 Viewpoints at Same Time with HD Wide Angle Cameras
  • Cameras: Includes 4 Cameras, record 3-4 viewpoints at same time,
  • Main Cams: Main cams records in up to 2K Video resolution, 170° Ultra Wide Angle Lens
  • 2nd Cams: 2 Outside Cams are FULL HD 1080P, waterproof with a 140-degree wide angle lens & 21’ cables
  • WiFi: Built in Technology, Connect to main cams to phone / tablet, View live recordings, Transfer videos to phone/tablet via WiFi
  • G-Sensor: protects, saves and locks video files if G-sensor detects hard braking incident, accident or collision
  • SOS: manually lock & protect video by pushing button
  • IR Lights: Infrared LED’s for improved recording in low light driving
  • Touch Screen: 3” Color LCD Screen
  • Install: Easy to operate, installs in minutes. Ready to use out of the box
  • Battery: Includes rechargeable lithium ion battery
  • Memory: Use up to a 256GB SD card in both front facing cams.
  • Fraud Protection: Prove what happened from 4 Viewpoints! No more "He Said, She Said"
  • FREE Shipping: We ship all orders out USPS Priority, 1-3 Day shipping
  • 30 Day Money Back Guarantee: Not sure if this is the headset for you, CHECK it out for 30 days to make sure!
  • Save Money: Lower insurance costs and deductibles immediately

Our 2nd Gen Pinnacle Quad Dash Cam is specifically designed for truck drivers, fleet companies and more! The main cams point forward (2 cams on each side of windshield) and mounts to the windshield. The 2 smaller Weatherproof Cams mount on the outside mirrors pointing backwards (or could be mounted anywhere, inside or outside)

NEED ACCESSORIES FOR THIS CAMERA SYSTEM?  CLICK HERE.

Have you ever felt like you’ve been falsely accused in a traffic accident or a moving violation? Would it have been beneficial to show video proof of what actually happened? Well, now you can, with our top of the line 4 Cam system from TopDawg. The Pinnacle QUAD DVR 2K WIFI Dash Cam offers crystal clear audio with 2K high-resolution recording of everything you see and hear...from up to 4 different viewpoints.

The days of being falsely accused in a traffic accident or moving violation are now over! Share your side of the story with incredible ease.

Can use up to a 256GB SD card, which would give you 40-48 hours of stored recordings. Place one of the wide-angle cameras on your dashboard and the other on your side view mirror and you’re ready to start recording - it’s that easy. Plus, the 3rd & 4th camera is weatherproof and has a 21’ cable, which means you can install this practically anywhere! Treat this system like your own personal black box: strong, secure, and able to record the most important of moments with video and audio.

Protecting yourself on the road has never been easier! Simple to install, easy to use, incredibly useful to have, don’t be caught without this incredible 4 Cam dash cam. Got Questions or need a Free Volume Quote, call Sales at 512.251.8472 or sales@topdawgelectronics.com

  • 2 front facing camera resolution: UHD 2880x2160 @ 24FPS, QHD 2560x1440 @ 30 FPS 2K, Full HD WDR 1920 x 1080 @ 60 FPS (1920x1080 when 2nd camera is plugged in)
  • 2 Outside Cams: HD WDR 1920 x 1080 @ 30 FPS
  • Outside Cams Cable: 21 feet Cables
  • Main Cameras: 170 Degree WDR
  • Outside Cams: 3rd-4th camera 140 Degree Wide Angle,
  • Photo: 12.0 Mega-pixel, JPEG Display: 4.0” TFT Colorful LCD
  • SD Card: up to 256GB micro SD Card
  • Length of Recording Time on SD Cards:
    • 2.5-3 HRs with 16GB SD
    • 5-6 HRs with 32GB
    • 10-12 HRs with 64GB
    • 20-24 HRs with 128GB
    • 40-48HRs 256GB
  • Sensor: Dual Sony IMX323
  • Wi-Fi: Included
  • Night Vision
  • Wide Dynamic Range
  • Included Chipset: NT96663 + 2GB DDRIII Video File
  • Format: H.264 MP4
  • G-Sensor: 3 axis solid collision detection
  • SOS Button: included Interface:
  • 2.0, HDMI Internal
  • Microphone: included
  • Operation System: Windows ME/2000/XP/Vista or above
  • Continuous Loop Recording
  • Included Parking Motion Detection
  • Included Power: DC5V
  • Battery: Rechargeable 330mAh Li-Polymer Battery
  • Cycled Recording: Included Nominal charging time: Max 2 hours
  • Battery Use Time: Up to 5 minutes (not designed to be used without charger)

  • Includes (2) 4K main front facing cams with 3" LCD
  • Includes (2) waterproof outside bracket cams w/ 21 foot cable
  • Includes (2) Cig Lighter DC mobile chargers with USB Female Plug
  • You choose to include no memory, 32GB, 64GB, or 128GB (will include 2 of each SD card when you purchase from us)
  • 2 Heavy duty windshield mounts
  • FREE App for WiFi (called TimaCam)
  • User guide, Quick Start Guide
DOWNLOAD FREE APPS:
Here are the links for you to download the FREE app in the Google Play Store or Apple iTunes. This app will allow you to connect to the Pinnacle via WIFI and view videos and change settings.
ANDROID
CLICK HERE
APPLE
CLICK HERE

    NEED ACCESSORIES FOR THIS CAMERA SYSTEM?  CLICK HERE.
