MDVR 3-8 BLACK BOX ONLY - NON 4G

0
Save $150.00
Original price $699.99
Current price $549.99 $699.99
SKU HDE-1054

Availability: In Stock

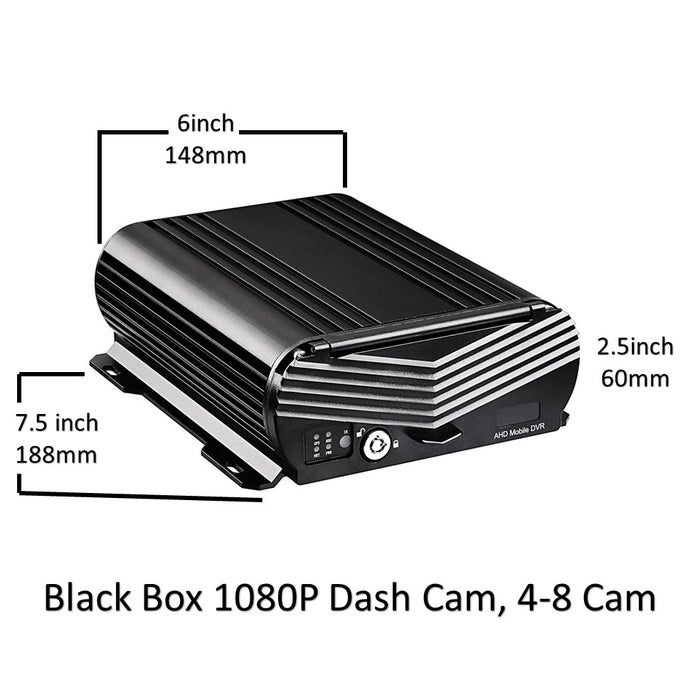

MDVR 3-8 BLACK BOX ONLY

  • Premium 8 Channel MDVR Black Box Unit
  • Record 3-8 Viewpoints in 1080 HD using Heavy Duty Bracket Cams or Aerodynamic Side Cams w/ Night Vision
  • Connect external PC monitor using included HDMI port
  • Connect external PC monitor using included VGA port
  • USB PORT - Connect a mouse, thumb drive, external HDD
  • Locked SDD drive slots & SD Card ports (driver cannot access memory, up to 128GB SD and Internal SDD drive slot, up to 4TB HDD Drive can be added
  • Includes GPS to Record Speed and Location
  • Record up to 1,500 hours + before Loop Recording with maximum memory
  • Password protected system (driver cannot edit videos or stop system from recording)
  • Can mount cameras anywhere, on trailers, inside trailers, any location on truck, can work on any vehicle
  • 30 Day Money Back Guarantee & 1 Year Warranty
  • FREE 1-3 Day Shipping, Ships SAME DAY

Meet our newest and our best multi-cam system for small and medium trucking companies. Protect your fleet or yourself with this innovative product. Video quality and technical strength exceeds the best in the industry.

MDVR 1080P system includes 3 1080P Heavy Duty Cameras that will protect your truck/fleet with 3 viewpoints! Want 4,5, 6, 7 or 8 viewpoints? This system can expand to up to 8 cameras (just add additional cameras during checkout or in the future). All recordings are time and date stamped and will protect you from fraudulent claims, potentially saving your company thousands and thousands! With the built-in HDD drive slots where you can add up to a 4TB SSD/HDD storage(HDD/SSD drives not included) and you can save over 1500 hours of f recording before they system will loop record. Plus, this system offers GPS, which will record the vehicle speed and location on all video files! All in all, this system is the ultimate system for truckers, especially fleets.

SAMPLE INSTALLATION IDEAS/EXAMPLES

DRIVING VIDEO

NIGHT CAMERA VIEWS

If you are looking to buy 2, 10, 20 or more, please email dennis@topdawgelectronics.com   or call Dennis at 512.251-8472 and we can put together a customized volume discount quote! Also, we are able to customize this system with additional features for volume orders!

MEMORY:

Includes 1 SD slots and an HDD Slot where you can add up to a 4TB HDD/SSD 2.5” Drive. All memory is securely stored inside a lockable slot and can only be accessed by included key. You can purchase SD card from TopDawg, but we do not offer/sell SSD/HDD storage drives, you must purchase these separately.

Length of Recording Time

  • 40-60 Hrs with 128GB (SSD/SD CARD)
  • 250-400 with 1TB (HDD Drive)
  • 500-800 Hrs with 2TB (SSD/HDD Drive)
  • 1,000-1,500 Hrs with 4TB (SSD/HDD Drive)

*amount of hours vary based on how many cameras and resolution settings.

Note: If SDD is installed (max 4TB), all recordings will save to the SDD. It will not record to SD cards. Once SDD reaches capacity, the loop recording feature goes into effect and will start recording over older video. The only time videos will record to SD Cards is when the SDD is not inserted/detected or SDD becomes defective.

 HDD DRIVE PORT INFORMATION:

  • Any 2.5" HDD/SSD that is a drive with at least 5400 rpm or above, up to 4 TB

Whatever you transport -  Flatbed, Specialized Trucking Trailers such as Step Deck Trailers, RGN – (Removable Gooseneck Trailer), Lowboy Trailers, Dry Vans & Enclosed Trailers, PO (Power Only), Flatbed Stretch Trailer, Extendable Double Drop Trailers, Refrigerated/Reefers, Conestoga, Tank Trailers/Tankers, Heavy Haul, Sidekit Trailers, Lowboy Trailers, Stretch RGN or Removable Gooseneck and Over Dimensional freight trailers. Or, Commercial & Industrial, Fire & Safety, Farm & Ranch, Travel Trailer and more.

You can customize a multi-camera system to Protect Yourself from Other Drivers on the Road while Monitoring & Recording Your Transport.

No matter what or how you transport, your 3 to 8 channel Multi-Camera System can be configured to your exact needs.  Cameras can typically be mounted anywhere you want to give you the kind of coverage you need both inside and outside your vehicle.  System can record all events around your vehicle, power continuously for constant 24 hour recording.

Additional Benefits:

  • MDVR is owner password protected preventing non-owner from changing settings or deleting videos without password.
  • Records 3-8 viewpoints with time and date stamped in 1080P HD quality
  • Loop records video continuously, replacing old video recordings with new footage
  • Three cameras included, records 3 viewpoints at once, can add up to a total of 8 cameras
  • 140-degree Wide Angle with 1080P HD Cameras
  • All cameras are 100% weatherproof
  • Dual SD Card ports in Lockable Slot: memory is locked, which means non-owner cannot access memory without key.
  • Can use up to a 256GB SD card
  • Multi-Camera Heavy Duty Camera System with 8 Channels.
  • Can use from 3 cameras, up-to 8 cameras in 1080P resolution
  • 2 Piece Unit, Separate Black Box DVR & Separate Monitor.
  • 3 Different 1080P Camera Styles Available. HD Bracket, Side Mount, Bar Bracket Cam
  • Monitor & Cameras Include MOUNTING Brackets
  • Records to SD Card up to 256GB
  • Lockable Dual SD Card slots - Tamper Proof; No Driver Access, Key holder Only
  • Playback GPS Included; Records Additional Metadata to SD Card.
  • GPS Playback Can Show Vehicle Route, Speed, Time, Date & More.

THIS SYSTEM DOES NOT HAVE 4G / LTE / WIFI TECHNOLGY THAT ALLOWS TO VIEW CAMERAS IN REAL TIME ANYWHERE INTERNET IS AVAILABLE THROUGH A MOBILE APP OR IP URL BROWSER SERVER.

To view our 4G/LTE/WIFI dash cam product line up, CLICK HERE

  • Operational System: Linux
  • Resolution: Chipset Hi-3520
  • Compression: H.264
  • Signal System: PAL:25 fps, NTSC: 30 fps
  • Language: English or Chinese, OSD Menu
  • Display Frame Rate: 1920 x 1080, 1080PP
  • Video Input/Output: 8-CH Input/1CH Output
  • Audio Input/Output: 8-CH Input/1CH Output
  • Alarm Input/Output: 8 alarm Input/2 Output
  • Recording: Manual, Scheduled, Motion Detection, GPS Vehicle Tracking, Speed Detection, Sync Time, Event Sensor trigger, Speeding, Accelerator, Temperature, Video Loss
  • Playing Mode: Supports 1 channel or synchronous 8 channels by PC
  • Searching Mode: By time/By date/By event
  • Storage: Supports single SD card, up to 128GB SD Card Per SD Card Slot. Supports Single HDD drive slot, up to 4TB storage drive (not included)
  • Model: GPS Included
  • Remote Control: IT Remote Control
  • Software Upgrade: SD Card or thumb drive via USB
  • Power Input/Output: 8-36V Input, 12V Output
  • 8 Channel MDVR Black Box Unit with:
  • 1 HDMI PORT
  • 1 VGA PORT
  • 1 USB PORT
  • AV OUT PORT
  • Part #: TDMDVR83
