1st Gen Digital Wireless DVR Dash Cam System! 2-4 Camera Options with 9" LCD Quad Screen

DISCONTINUED, replaced by 2nd Gen System, HERE

9” LCD Digital Wireless DVR System w/ 2 to 4 Wireless Cameras

• Premium WIRELESS 2-4 Camera DVR System for Truck Drivers & Fleets
• Record 2-4 Viewpoints with Wireless Heavy-Duty Bracket Cams
• Night Vision camera recordings with 20 built in infrared lights
• Wireless 9” LCD with Quad View Capable Screen (1, 2, 3 or 4 Viewpoints at the same time)
• Easy Do-it-Yourself Installation
• Reduce Accidents by 70% or more with Blind Spot Monitoring
• 30 Day Money Back Guarantee & 1 Year Warranty
• FREE 1-3 DAY SHIPPING

Informational Video:

NEED ACCESSORIES FOR THIS CAMERA SYSTEM?  CLICK HERE.

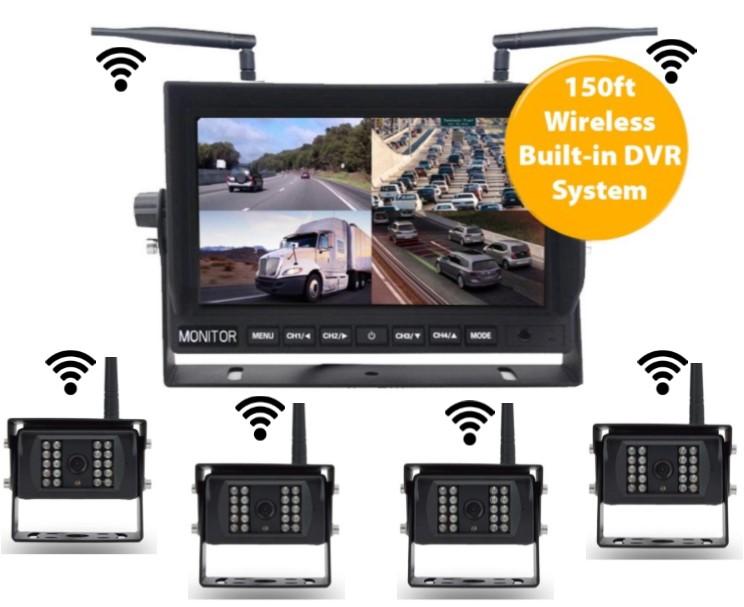

This 9" Widescreen LCD with built-in DIGITAL wireless receiver, is a quad-view monitor. You can select single, dual or QUAD camera viewpoints. 9” monitor includes secure microSD Card slot which will allow you to record all video that is displayed on the monitor. System includes a remote control. Can use up to a 128GB microSD card (NOT INCLUDED)

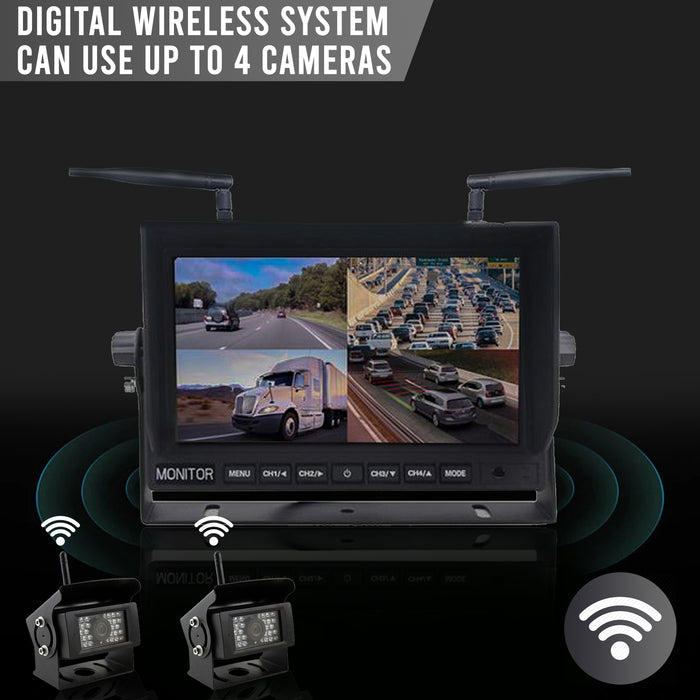

Digital wireless system comes standard with two wireless cameras. You can add a third or fourth camera any time, this will enable you to record and view 2-4 viewpoints. All recordings are time and date stamped for additional accuracy.

Do you have a trailer that you do not own? Would you like to see behind you while you are driving or backing up? With our magnetic mount, click HERE & Rechargeable Weatherproof Battery, click HERE, you can install and remove a wireless camera in seconds.

This one of the best overall system for truckers, especially fleets. If you are looking to buy 2, 10, 20 or more, please email sales@topdawgelectronics.com  or call Sales at 512.251.8472 and we can put together a customized volume discount quote!

Avoid Accidents with Rear View Monitoring

DISCONTINUED, replaced by 2nd Gen System, HERE

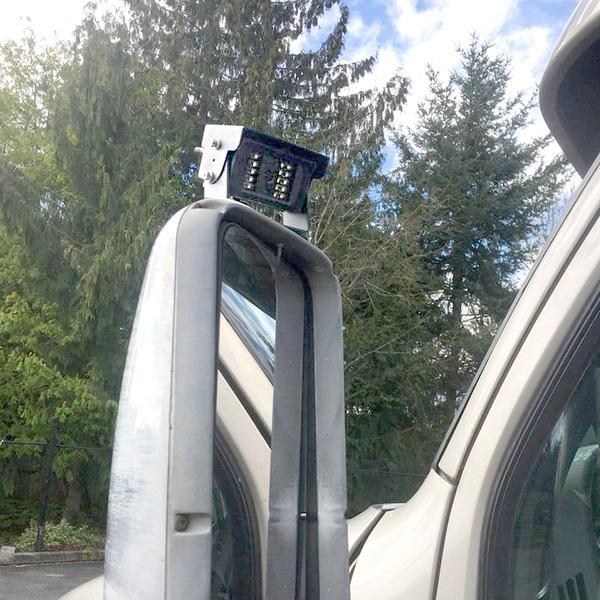

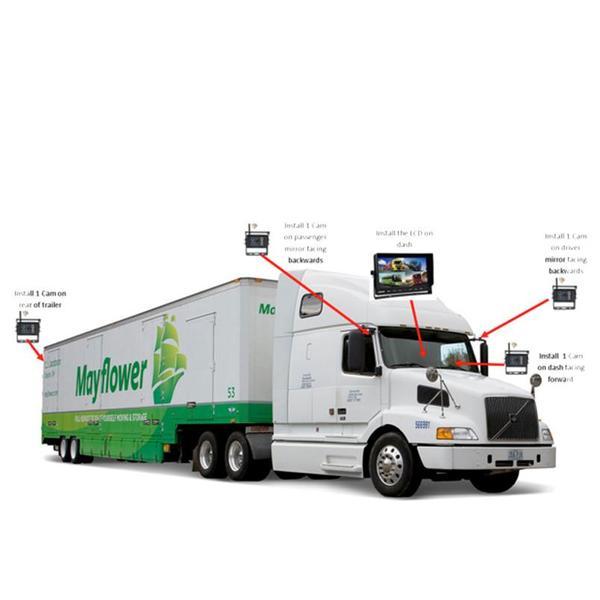

Before you change lanes, see what is in your blind spot! Install a camera on the rear of your vehicle and always see what is behind you.

• DIGITAL Wireless Back-Up Camera System, 0% Interference, 0% statics, with 100% crystal clear picture
• Quad view monitor allows single, or multiple views (split display). SD card slot allow video to continuously loop record.
• DIGITAL Wireless Back-Up Camera System, no need for complex wire connections for an easy install.
• Built with 20 high-powered IR LED night vision bulbs for the best night viewing
• Mirror image button feature directly on the monitor
• Automatic video setting for bright and dark environments
• 9” Color LCD Monitor with built-in receiver
• Waterproof, heavy-duty 20 IR camera provides flexible mount options
• For use with 12V-24V DC electrical systems
• Easy installation with the elimination of wires from camera to monitor
• Box complete with everything you need to install
• Easy to read English installation manual

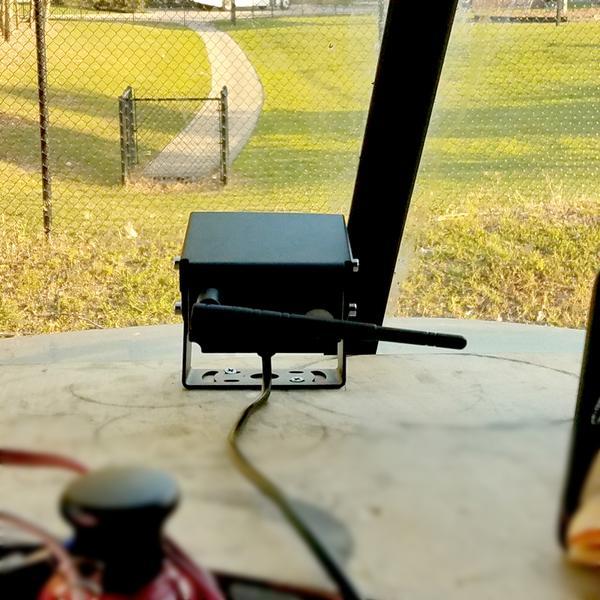

• Do you want to turn off the 20 IR lights on the inside dash camera? If the 20 IR lights are reflecting off your windshield, you can upgrade for a small charge to this camera, HERE. It offers a manual button to turn off the IR lights.
• If you are buying a 2-4 Camera system and you want to upgrade one of the cameras so you can turn off IR lights, click HERE

 Product Video:

DISCONTINUED, replaced by 2nd Gen System, HERE

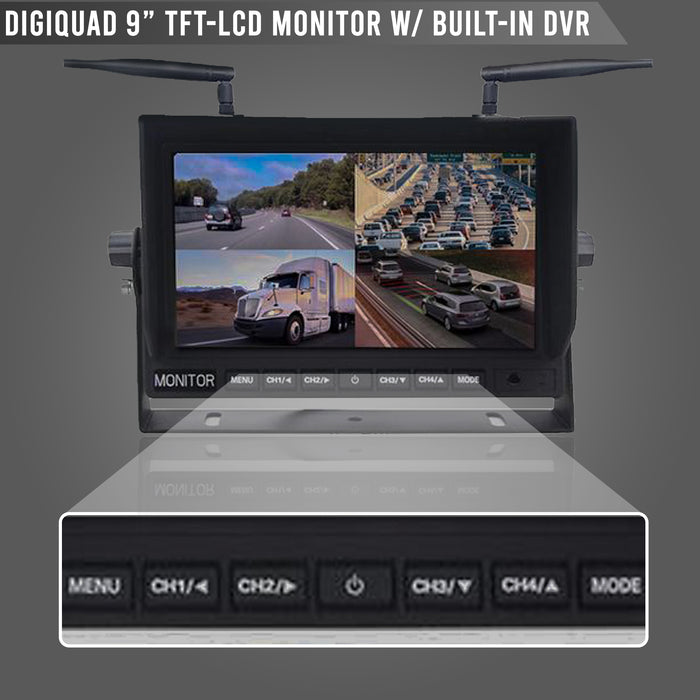

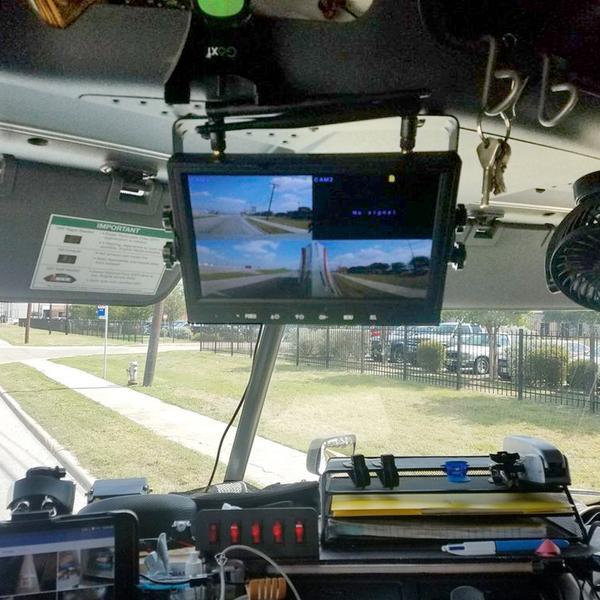

The Monitor (Quad view and video recorder DVR):

This 9" Widescreen LCD with built-in DIGITAL wireless receiver, is a quad-view monitor. You can select single, dual or QUAD camera viewpoints. 9” monitor includes micro-SD Card slot which will allow you to record all video that is displayed on the monitor & system includes a remote control. Can use up to a 128GB micro-SD card (NOT INCLUDED)

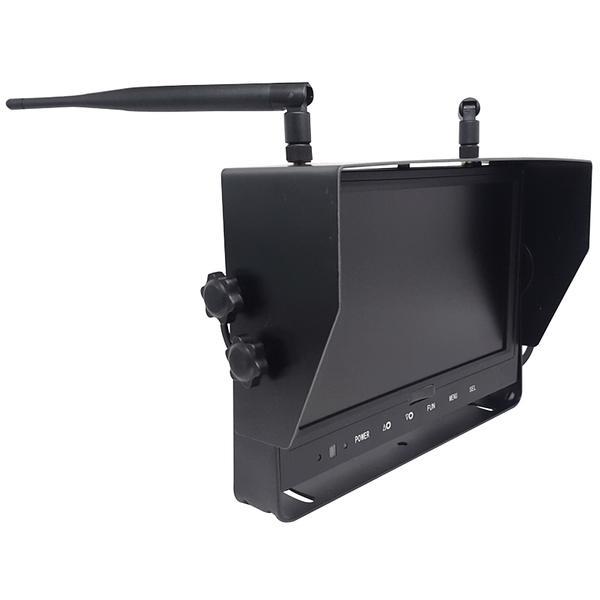

The 1" thin LCD sits on a fully adjustable base allowing you to point the screen in almost any direction. It also includes sun shield. Monitor allows for better reception for long range signals with a removable external antenna. LCD menu options allow image rotation, mirror, and non-mirror settings.

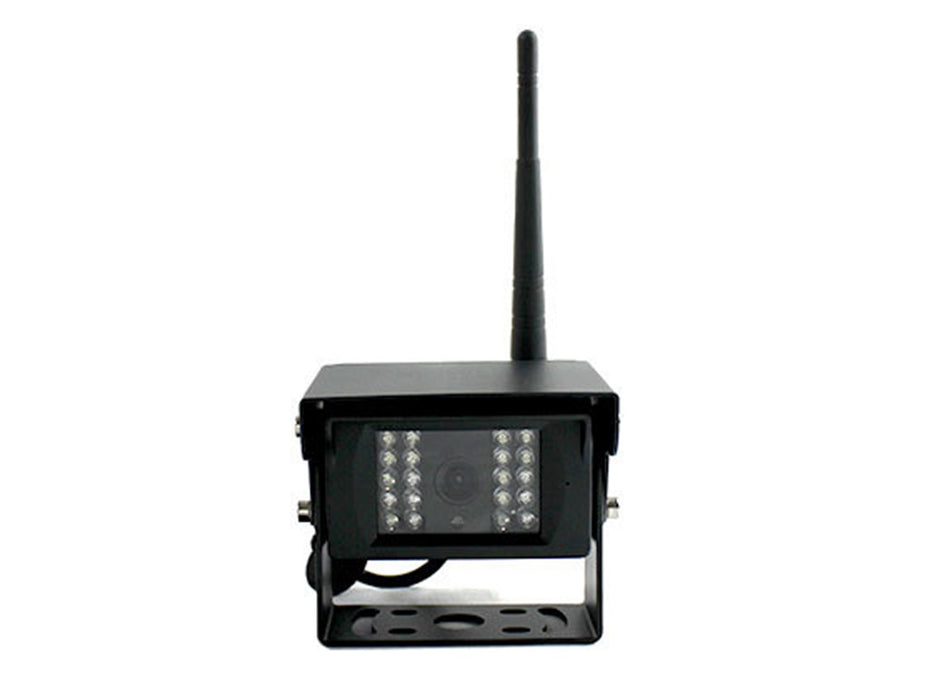

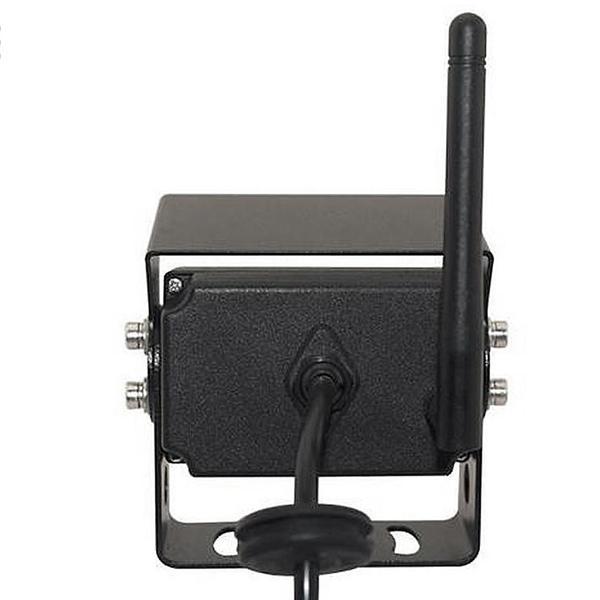

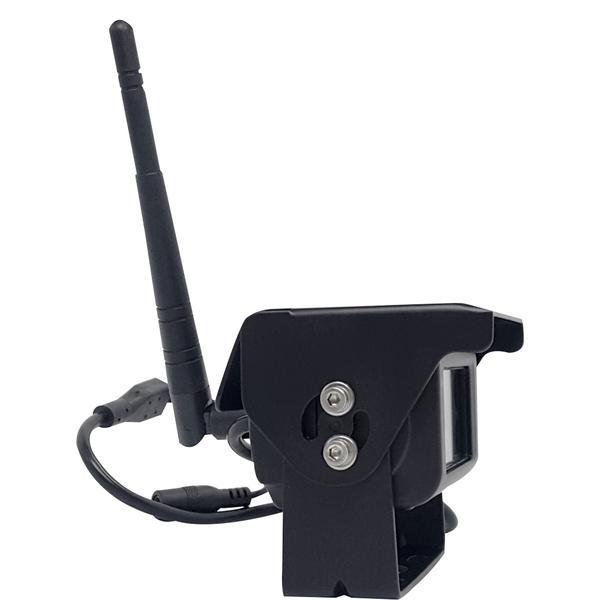

Heavy Duty Wireless Cameras with 20 IR Lights:

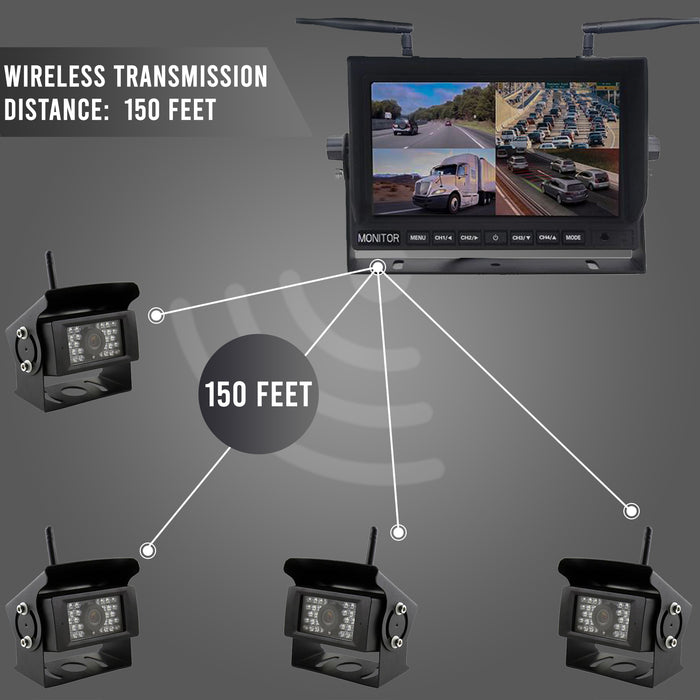

Each camera includes a heavy-duty metal framed, water-proof wireless camera. Each camera includes 20 high-powered IR LED's for up to 30 feet of night vision viewing in total darkness. Camera uses SONY 1/4" high-resolution CCD, with removable external antenna for longer range signal transmissions.

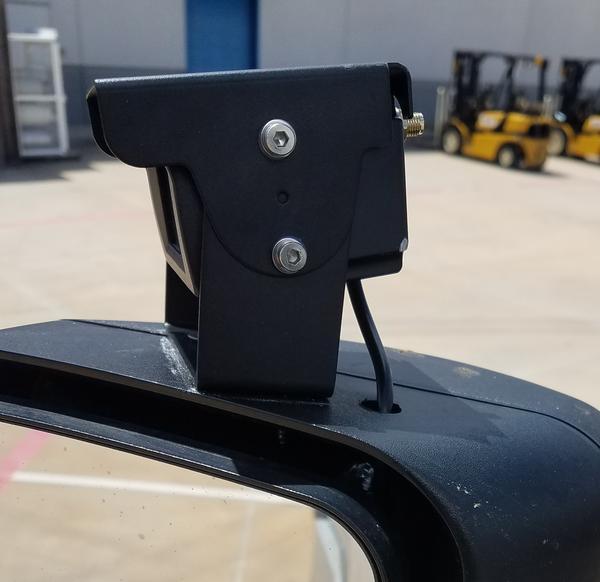

Estimated unobstructed range is 300 feet. Each camera comes with a heavy-duty adjustable steel mounting bracket. The aluminum alloy metal casing comes with 6.8 G-force shock resistant and weatherproof professional grade.

• Do you want to turn off the 20 IR lights on the inside dash camera? If the 20 IR lights are reflecting off your windshield, you can upgrade for a small charge to this camera, HERE. It offers a manual button to turn off the IR lights.
• If you are buying a 2-4 Camera system and you want to upgrade one of the cameras so you can turn off IR lights, click HERE

Truck Driver Accident Video using this system:

Day & Night Driving Video:

Customer explains why he purchased this system:

DISCONTINUED, replaced by 2nd Gen System, HERE

• Monitor Size: 9"
• Resolution: 800 x 3 (RGB) x 480
• Contrast: 500:1
• Brightness: 400 cd/m2
• Viewing Angle: 120 Degree Wide Angle
• Aspect ratio: 16:09
• Operating temperature: -20~+60° C, RH 90%
• Storage temperature: -30~+80° C, RH 90%
• Operating frequency: 2400 - 2483.5 MHz
• Transmitting distance: up to 300 ft
• Receiving sensitivity: -78 dBm
• Decompression form: MPEG4
• Emitting frequency: 18dBm
• Transmitting speed: 12 Mbps
• Modulation: 2.4G FSK / GFSK
• TF Card: Max. 128G
• Delaying time: 120 ms
• System format: PAL / NTSC
• Energy Consumption: Max. 6W
• Loudspeaker: 1.5W/8Ω

Customer Install Video #1:

CAMERA

• Image Device: 1/3" PC1089
• TV System: PAL / NTSC
• Scanning System: 2:1 Interface
• Sync. System: Internal
• Resolution: 600 TV Lines
• Operating Temperature: -20°C~60°C, RH 90% MAX.
• Storage Temperature: -30°C~80°C, RH 90% MAX.
• Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
• Microphone: Yes
• Gamma Consumption: 0.45
• AGC: Auto
• S/N Ratio: Better than 48dB
• White Balance: Auto
• Electronic Shutter: 1/60 (NTSC) ~ 1/10,000 Seconds, 1/50 (PAL) ~ 1/10,000 Seconds
• BLC: Auto
• Current Consumption: Max. 300mA
• Power Supply: DC 12~32V
• Operating Frequency: 2400 - 2483.5 MHz
• Transmitting Device: up to 300 ft
• Receiving sensitivity: -78dBm
• Decompression form: MPEG4
• Emitting frequency: 18 dBm
• Transmitting speed: 12Mbps
• Do you want to turn off the IR lights on the inside camera, so the IR lights will not reflect off the windshield? Purchase this new Camera, HERE
• If you are buying a 2-4 Camera system and you want to upgrade one of the cameras so you can turn off IR lights, click HERE

Customer Install Video #2:

DISCONTINUED, replaced by 2nd Gen System, HERE

• 2, 3 or 4 Digital Wireless Heavy Duty Night Vision Cameras (depending upon if you choose 2, 3 or 4 cameras during checkout)
• DigiQuad 9” TFT-LCD Monitor w/ built-in digital receiver
• Rotating dash mounting bracket for LCD
• Sun-shield for LCD Monitor
• 12v Hard Wire Power Kit for LCD Monitor
• Remote Control for LCD Monitor
• 2 Large Antennas for LCD Monitor , 1 small antenna for each camera
• Video cable, screws, wire connectors
• User manual

Optional Accessories:

• 16GB, 32GB, 64GB, or 128GB SD Card
• Additional Digital Wireless Camera (4th camera) ($124.79) CLICK HERE

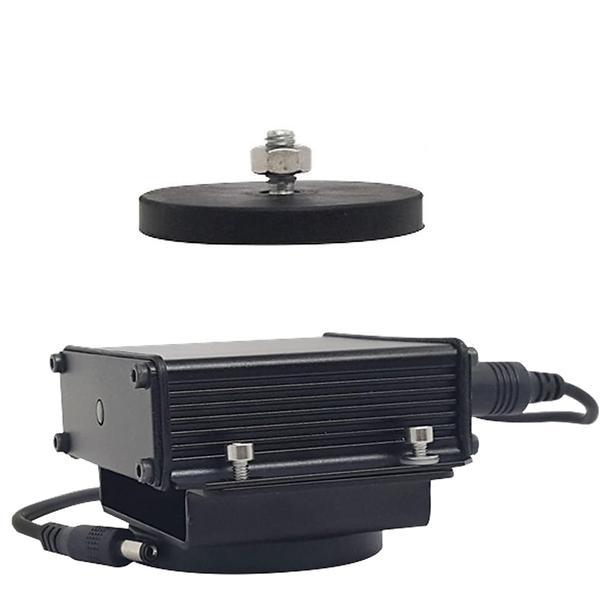

• Magnetic Mount for Camera (allows you to mount camera to metal easily) ($24.99) CLICK HERE

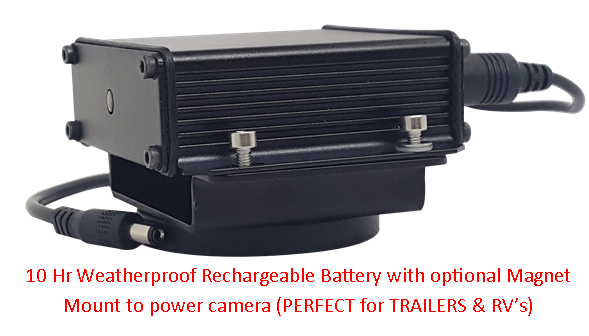

• Rechargeable Battery Pack  for Camera power (allows you to make any Digital Wireless camera PORTABLE.) CLICK HERE
• Do you want to turn off the IR lights on the inside camera, so the IR lights will not reflect off the windshield? Purchase this new Camera, CLICK HERE
• If you are buying a 2-4 Camera system and you want to upgrade one of the cameras so you can turn off IR lights, CLICK HERE

TO SEE ALL ACCESSORIES FOR THIS CAMERA SYSTEM, CLICK HERE.

Stuff to Know Concerning Installation and DVR Functionality:

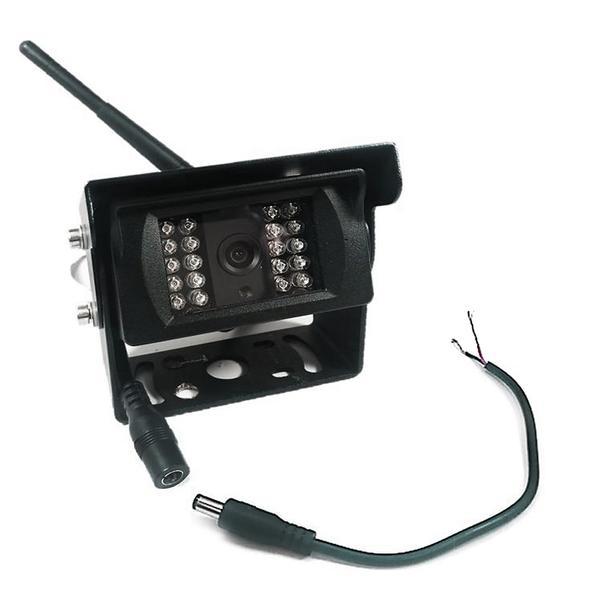

1. Each Camera includes a 12 volt power cable. You will need to tap each camera into a 12 volt power source.

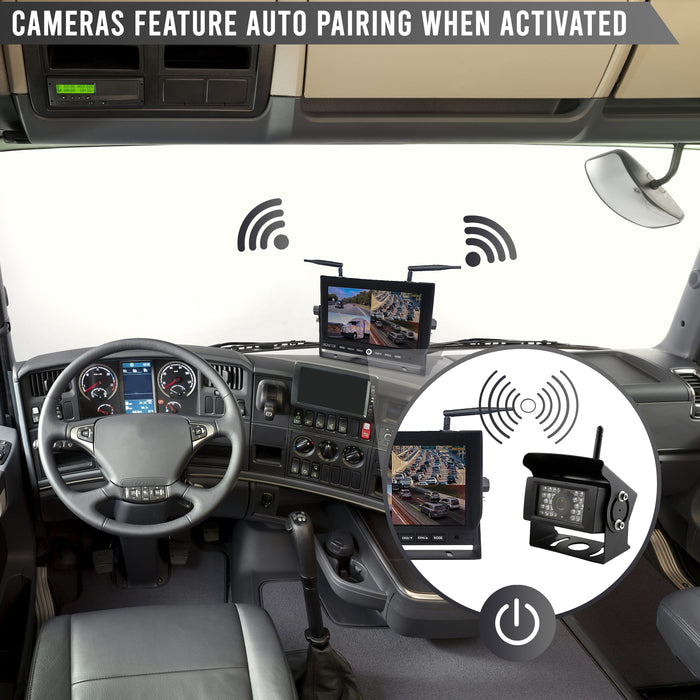

2. Once the LCD is one and the cameras have power, the LCD will automatically display the cameras.
3. You should set up the LCD to show quad view, which means it will show 4 camera views at same time. With only 3 cameras included, you will have one of the screens blank
4. DVR Function
   1. If you purchase and insert a micro-SD card, you can now use this as a DVR to record the video
   2. The LCD will record what is shown on the LCD, which means if you show only one camera, only that one video will be recorded. If you show quad screen, then the LCD will record the quad screen video
