Forklift 1080P Wireless Cam w/ 7" LCD! Main Cam has built-in Battery & Magnet - Can use up to 2 wireless cams

0
Save $90.00
Original price $579.97
Current price $489.97 $579.97
SKU TDMS738-1

Availability: In Stock

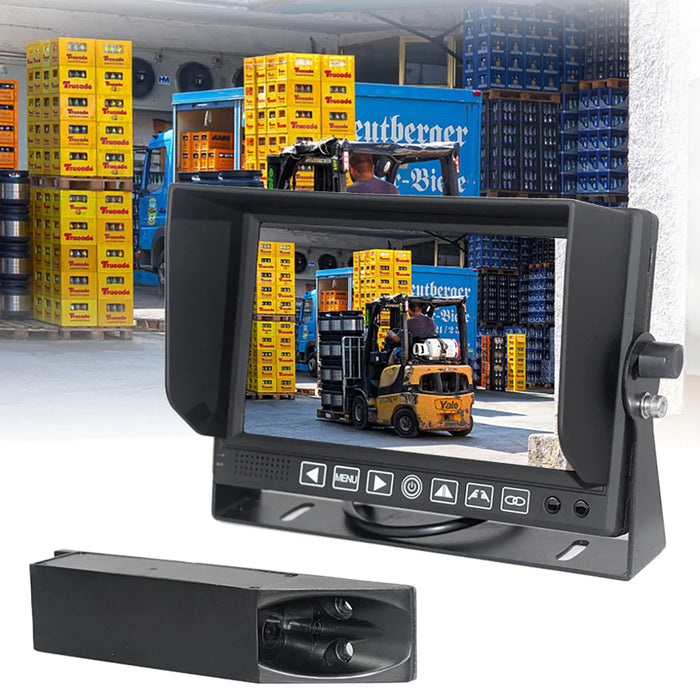

Forklift Heavy Duty WIRELESS Backup Cam System with 7 inch LCD with built-in DVR! Designed for Forklifts, comes with Heavy Duty Wireless Forklift Cam that includes Battery/Magnet for Easy Install and Portability! Can add a 2nd wireless cam now or in future!

Increase Warehouse Safety and Productivity with:

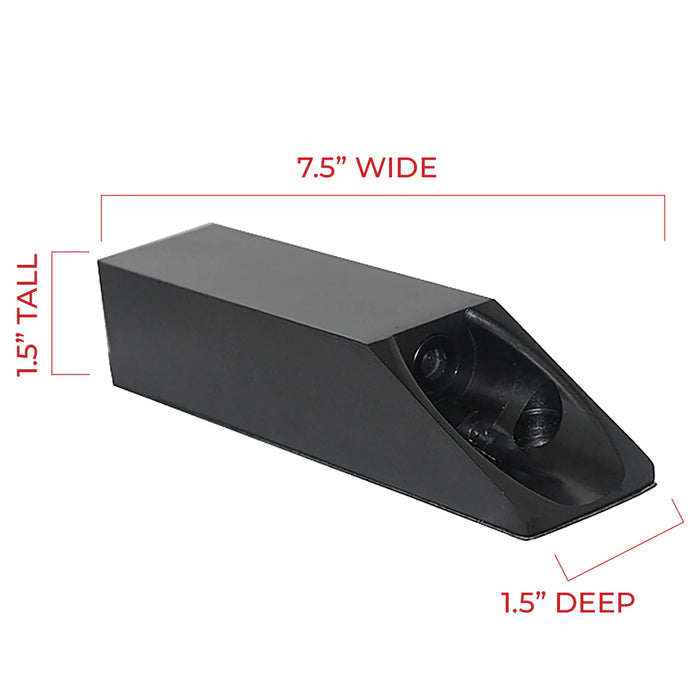

  • Wireless Cam: Stainless Steel, Heavy Duty Waterproof 1080P Wireless Forklift Camera with built-in Heavy Duty Magnet & Battery (lasts up to 6 hrs). Wireless range is up to 100' or greater
  • LCD Screen:  7 inch Color LCD Monitor with DVR. DVR allows you to record 1-2 viewpoints if you add SD Card (up to a 128GB SD Card)

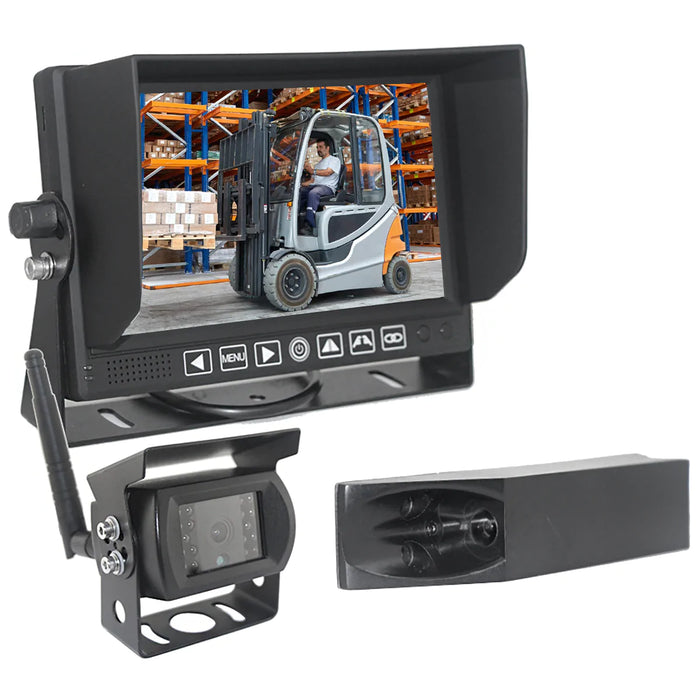

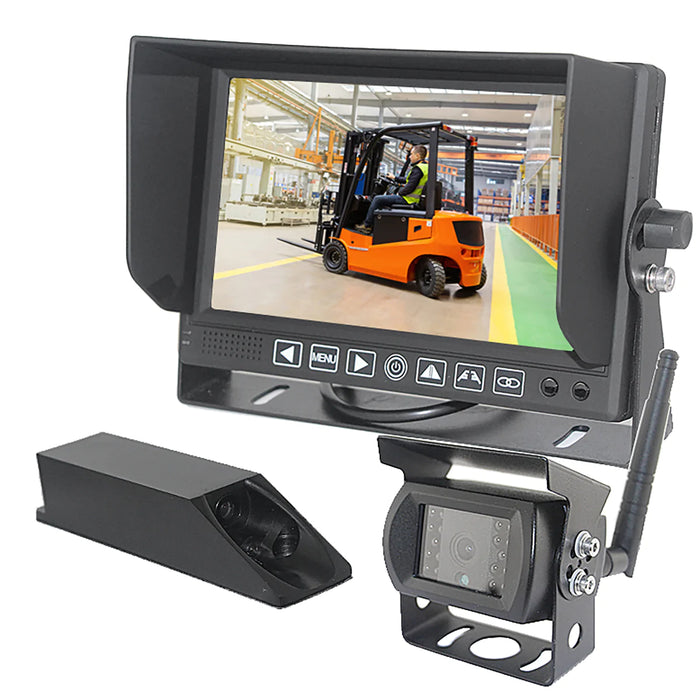

  • Additional OPTIONAL Wireless Cam: Heavy Duty Bracket Wireless Cam can be added at any point. Will allow you to view and/or record from 2 viewpoints. Wireless range is up to 100' or greater
  • Views: See what is behind or in front of the forklift (or both if you purchase 2 cameras) at all times (or in front, depending upon where you install the camera)
  • Installation: 5-30 Min installation
  • Avoid Accidents: Avoid most or all catastrophic accidents with other people and/or accidents damaging equipment and more
  • FREE Shipping: We ship all orders out USPS Priority or UPS Ground, 1-4 Day shipping
  • 30 Day Money Back Guarantee: Not sure if this is the headset for you, CHECK it out for 30 days to make sure!
  • Save Money: Reduce Insurance rates and premiums immediately

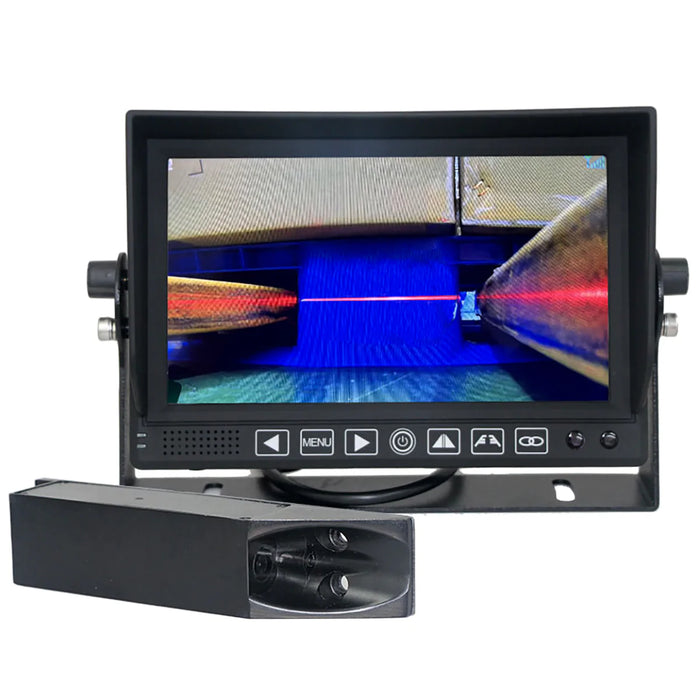

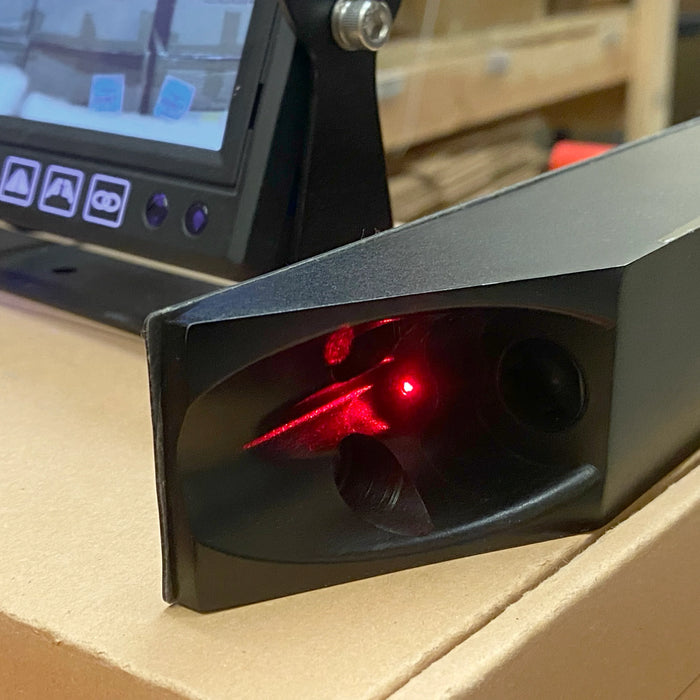

Reduce product damage and increase safety with our Laser Assisted Forklift Guidance Camera System. The Laser-Guide is included with the Main forklift cam (is not included on the 2nd heavy duty rectangular camera) and offers an adjustable, fan-shaped laser beam that projects out from the forks indicating the exact fork position. This laser will assist the operator to properly pick up pallets and other objects quicker, more safely and easier, especially in low lit areas. Our Laser Assisted Forklift Camera easily mounts to the lift truck or fork, installing in minutes.

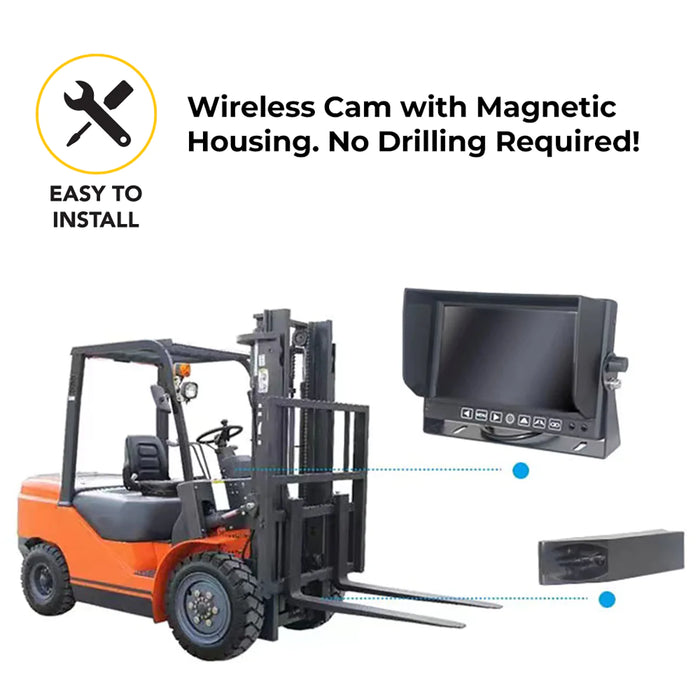

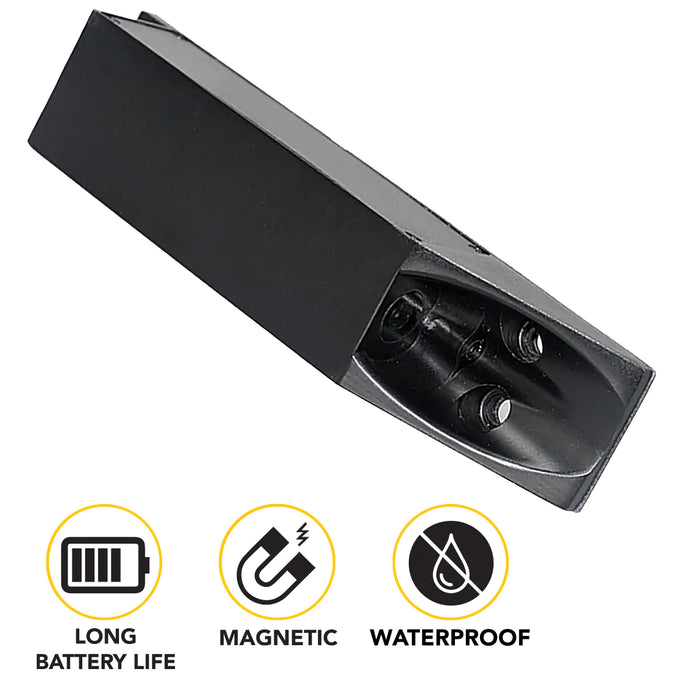

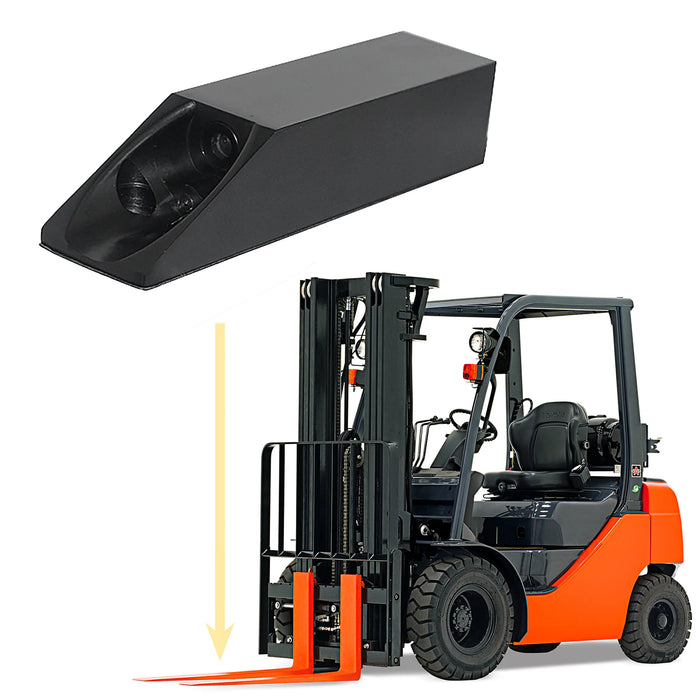

This camera system offers a 1080P wireless camera with a built-in magnet and battery that is designed to be installed on a fork of a forklift, but this is versatile so you can install this camera anywhere you choose. Since this has a 6 hr battery included and magnet, the installation of the camera will takes seconds. The camera resolution is crisp and has HD quality and will deliver an awesome viewpoint to the 7" LCD. Plus, if you want a 2nd camera to view 2 viewpoints, you can add an optional additional 1080P 2nd cam during checkout or in the future. This additional wireless cam is a heavy duty commercial grade bracket cam (has to be this type of camera only) that can be installed anywhere. This additional optional 2nd cam does not include a battery/magnet, so you will need to power this camera to a 12-24v power source or you can buy our optional rechargeable battery to power this camera (CLICK HERE).

Interested in purchasing a magnet or battery with this system?
Get the Battery Here

This system includes a 7" LCD with built-in DVR. With this color 7" LCD, you can display 1 cam in full screen mode or split screen if you purchase 2 cams with this system. This LCD has a built-in DVR, which means that if you insert a memory SD card (up to 128GB allowable), the DVR will record the 1 (or 2 viewpoints if you add 2nd cam) onto the memory card. This will allow you to play back video on 7" LCD from videos stored on memory card and/or transfer videos to computer/phone to save forever. The DVR will loop record, deleting old video with new video, continuously and forever, once the SD card is full. The larger the memory card, the more video that is stored before it will loop record. 32GB will store about 7 hours, 64GB will store about 14 hours and 128GB will store about 28 hours before loop recording. This LCD includes a U bracket mount and a windshield/glass suction cup mount that will allow you to install on top of dash or flat surface or against any glass/windshield. LCD is powered by tapping the red/black power cable to any 12-30v power source.

If you want to avoid costly accidents and improve driver and work safety, purchase our forklift 1-2 cam wireless system that can be added to practically any forklift or similar equipment in minutes!

Call us anytime to talk more about your needs and get advice if this is the right system or if we have another camera system that may be a better fit. Also, volume discount quotes and pricing available! Call us at 512.251.8472 or sales@forkliftcams.com

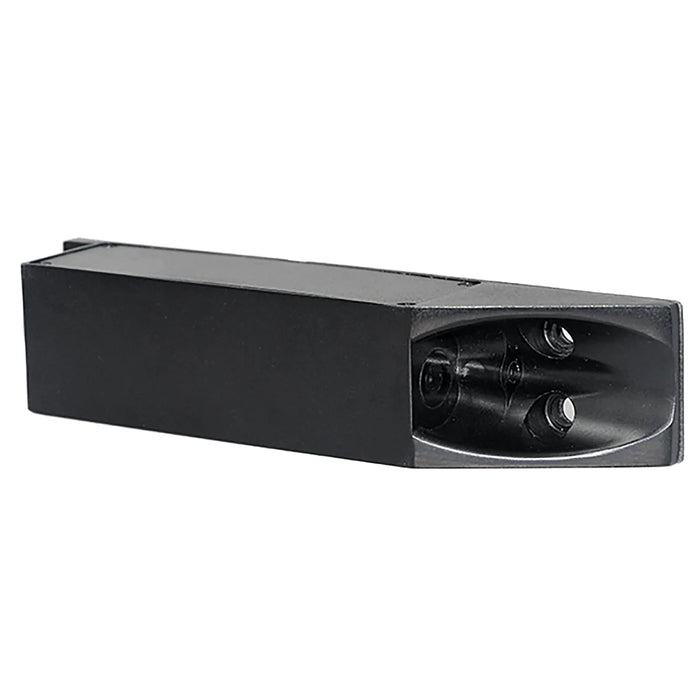

    FORKLIFT MAIN CAM WIRELESS SPECS

    • Image sensor: CMOS 1/2.7”
    • Effective pixels: 1920×1080, 1080P
    • Transmission frequency: 2400-2483.5MHZ
    • Transmission distance: 50M in open area
    • Night vision: LED, white light
    • Transmission bandwidth: 8MHz BER<1E-3
    • Image: Mirror
    • Working time: 6H with fully charged
    • Standby time: 100 days with fully charged
    • Voltage: DC 12-24V
    • Power saving mode: Automatically
    • Working temperature: -20~+70 ºC 85%RH MAX
    • Storage temperature: -30~+85 ºC 95%RH MAX
    • SNR: 46.5dB
    • Waterproof level: IP69K
    • Viewing angle: Horizontal more than 40°
    • Transmission sensitivity: -89 dBm
    • Shell materials: Black aluminum alloy
    • Size: 74*45.5*56.5MM
    • Weight: 1.05 lbs

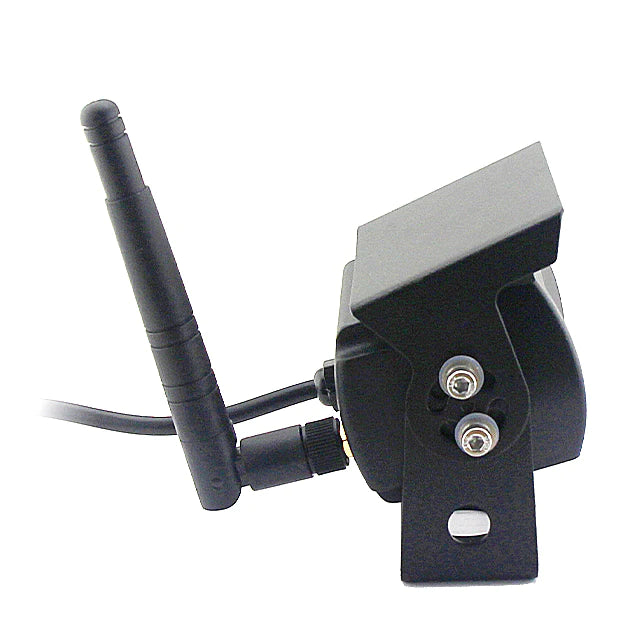

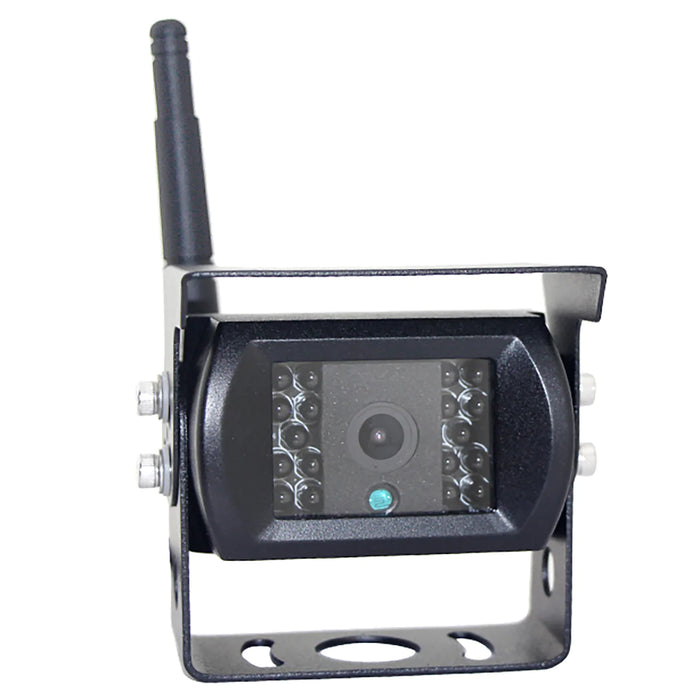

    2ND BRACKET WIRELESS CAM SPECS

    • Image sensor: CMOS 1/2.7''
    • Pixel: 1920×1080 pixels. 1080P
    • Operating frequency range: 2400-2483.5MHZ
    • Transmission distance: 200m in open area
    • Transmission bandwidth: 8MHz BER<1E-3
    • Working temperature: -20~+70 ºC 85%RH MAX
    • Storage temperature: -30~+85 ºC 95%RH MAX
    • SNR : 46.5dB
    • Waterproof level: IP69K
    • Viewing Angle Diagonal Angle : 120°
    • Transmitting sensitivity: -89 dBm
    • Shell material: Black aluminum alloy
    • Size 74*45.5*56.5MM
    • Weight: 1 lb

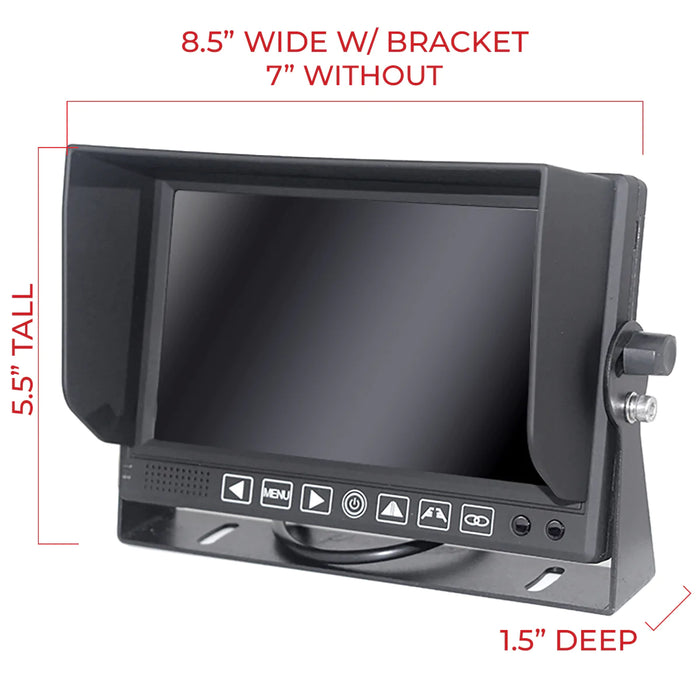

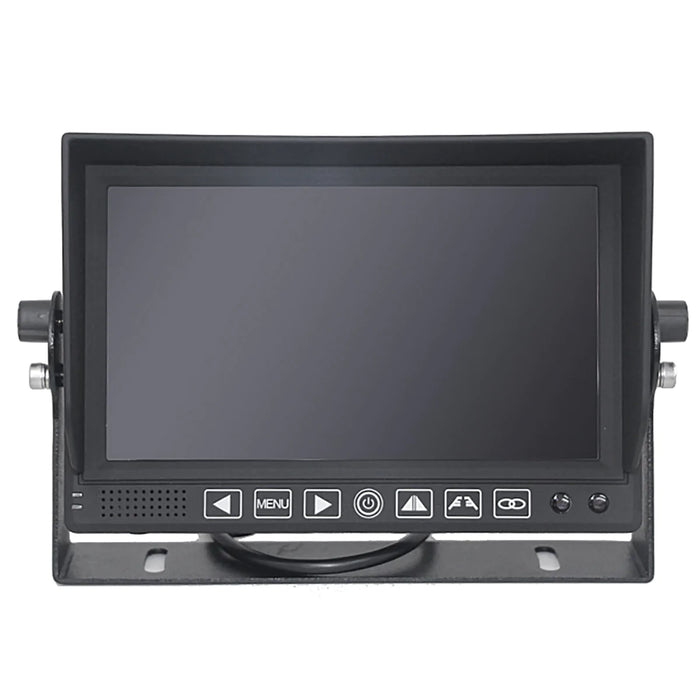

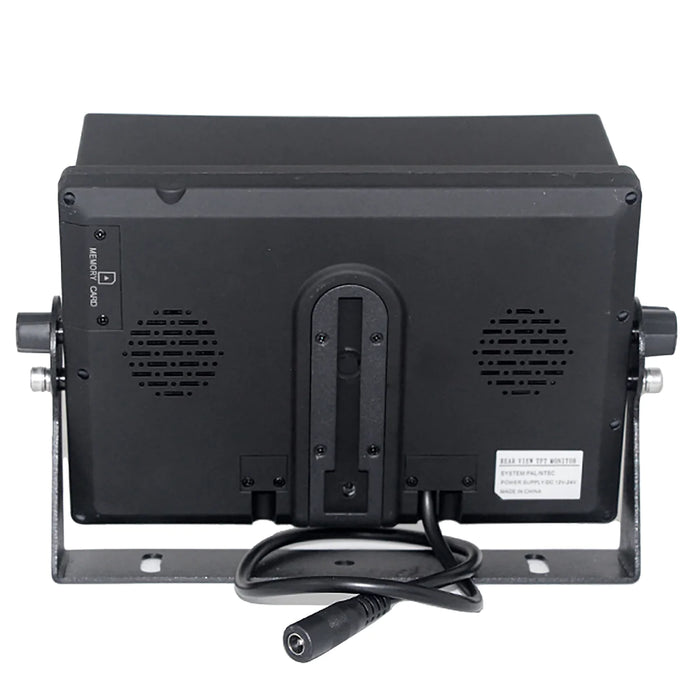

    7" LCD SPECS

    • Screen ratio: 16:9, IPS
    • Resolution: 1024*R.G.B*600
    • Back light: LED, brightness 500 cd/m2
    • Viewing angle: U—85°,D—85°, L—85°, R—85°
    • Working temperature: -20~+70 ºC 85%RH MAX
    • Storage temperature: -30~+85 ºC 95%RH MAX
    • Power supply: DC12-24V
    • Image delay time: 120mS
    • Consumption current: 12V Standby:≤10mA,working.≤320mA
    • Power consumption: <3.8W
    • Language: Chinese and English
    • Infrared remote control: Support
    • Working frequency: 2400 ~ 2483.5MHz *
    • Decompression format: H.264
    • Receiving sensitivity: -89dBm@4MHZ
    • DVR Recording: INCLUDED
    • Recording file: 10S /30S/1S/5S optional
    • SD CARD SIZES:1 6-128GB TF CARD
    • File size: 3.3M/min
    • Playback mode: Single image
    • File format: MP4
    • Receiving distance: 50M in open area
    • Shockproof level: 4G
    • Shell materials: PC+ABS
    • Power cable: DC5.5 male connector power cable
    • Weight1.2 lbs
    • Size: 80mm*121mm*24mm

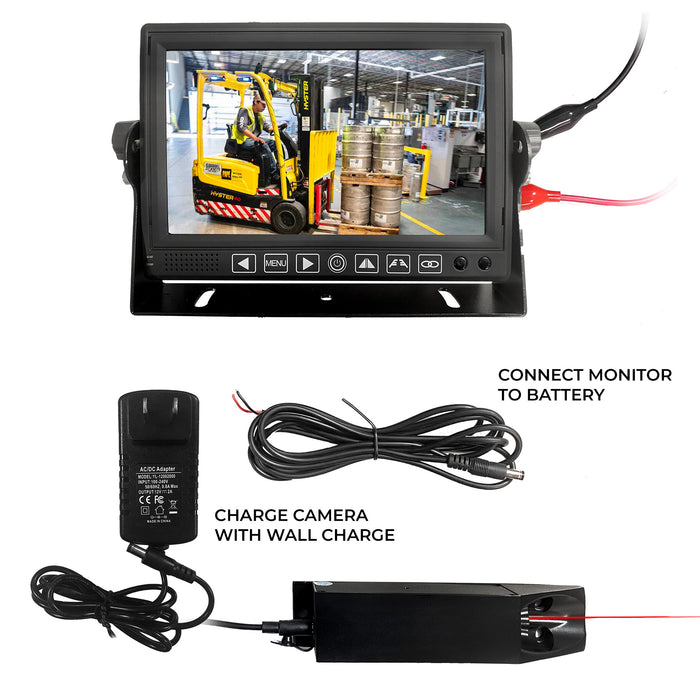

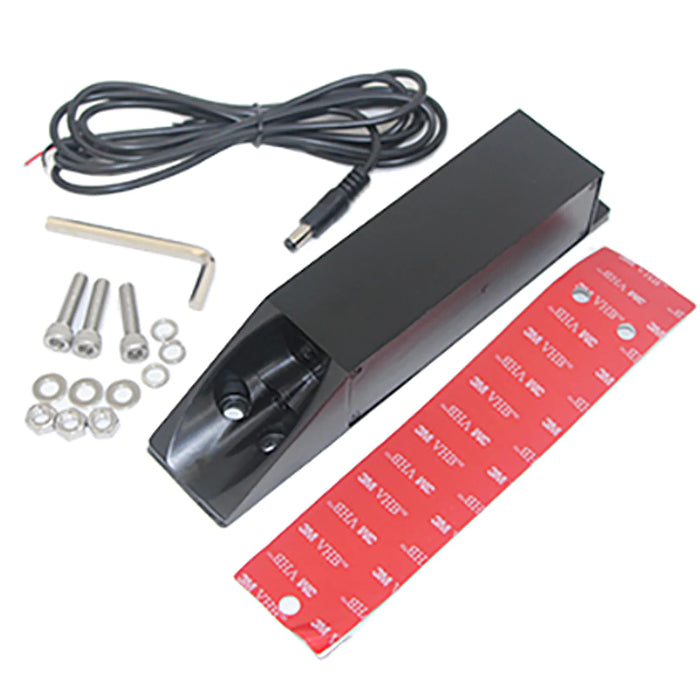

    • 1080P IP69K Waterproof Forklift cam with built-in magnet & battery (can add a 2nd 1080P bracket rectangular camera during checkout)

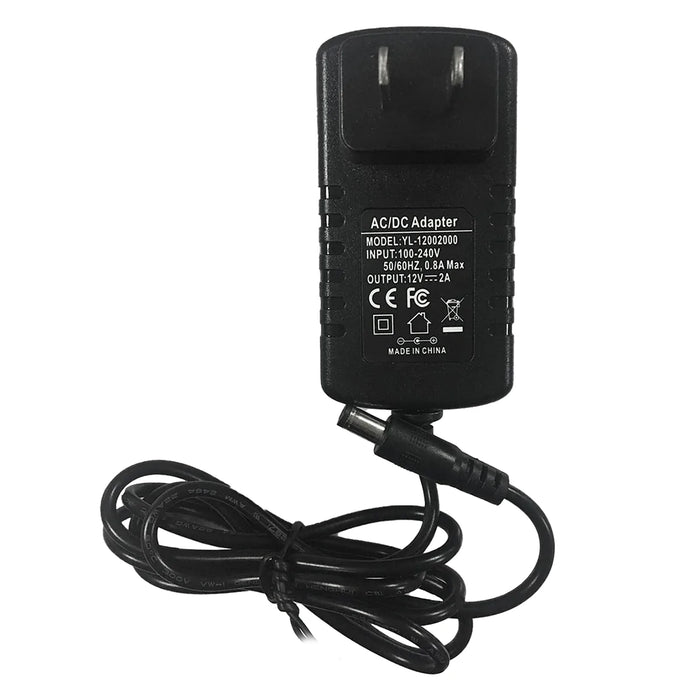

    • AC Charger for forklift cam with battery

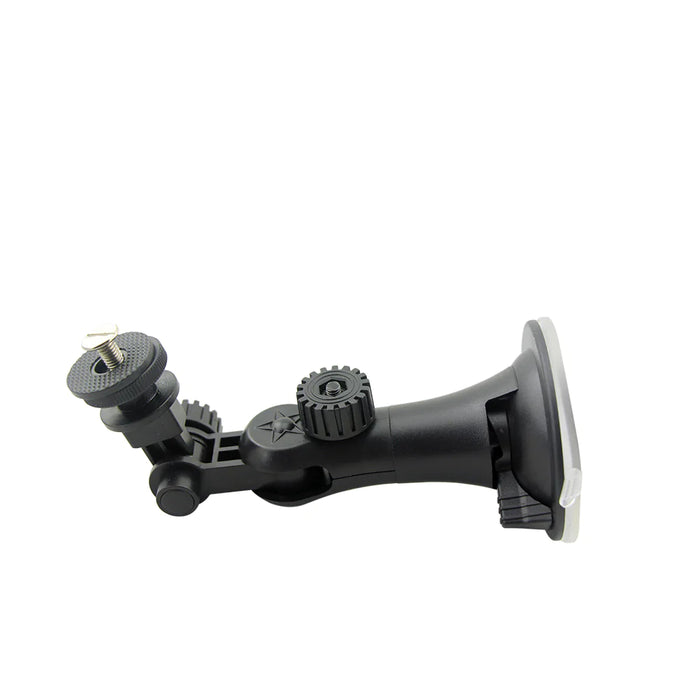

    • Heavy duty dash mount & windshield/suction cup mount
    • 1024 x 600P 7” LCD monitor with 12v - 24v hard wire cable
    • Installation guide

    Product Disclaimer: This system is designed to be an aid and should not replace the need to drive carefully. Under no circumstances will manufacturer, supplier or retailer accept any responsibility or cannot be held liable for any direct or indirect, incidental or consequential damage or for injuries results from installing or using this system or from any backing accident.
